End Dumps

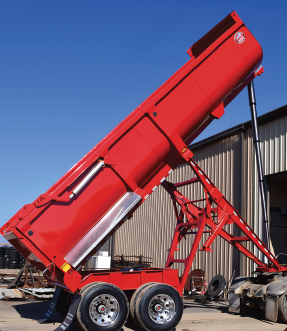

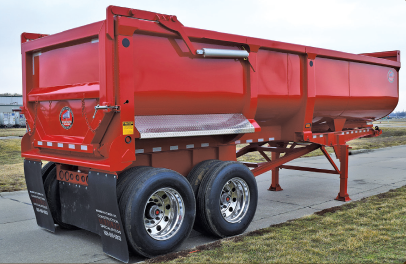

If you're looking for a trailer with a high capacity that can handle the toughest jobs, the Scrap Master™ elliptical end dump trailer is the trailer you're looking for! Not only is our Scrap Master™ elliptical trailer perfectly suited for scrap metal, but it can also handle construction material, rip rap and large boulders. The elliptical end dump features a 1/4" AR 450 tub that can withstand constant use. Our unique barn door style tailgate features a rotating rear mud flap and door that sits flush with tub so there's no obstruction with the ground at the end of the dump cycle. The Scrap Master™ is also equipped with a single point suspension that keeps all eight tires on the ground during the entire dump cycle.

Specs

Standard Trailer Specifications

Dimensions 40' Length x 102" width x 76" Height
Lighting Standard LED Lighting
King Pin/Coupler Height 18" / 49"
Color White, Black or Grey
Body 1/4" AR 450 Wear Plate
Nose & Gate 3/16" AR 450 Wear Plate
Tailgate Barn Door with Cam-Over-Center Air-Operated Bottom Latch and Ratchet-Operated Side Latch
Axles 25,000lb. 5" Tubular , 5/8" Wall
Suspension 50,000lb. Single Point.
Tires/Wheels 11R x 24.5 16 Ply Radials / 10 Hole Hub Piloted Steel
Paint High-Gloss, Reverse Impact, UV-Protectant, Rust-Inhibiting
Draft Arms 5" x 3" x 1/4" Steel Tubes with 2-Speed Landing Gear
Landing Gear 2-Speed
Fenders Rear Aluminum Bolt-On
 Capacity (40' L)  64.867 Cubic Yards (76” Side Height) 86.844 Cubic Yards (100” Side Height)

Options

Trailer Options

  • Air Ride Suspension
  • Triple Axles
  • Quarter Frame
  • Full Frame
  • Front Fenders
  • Numerous Tarp Options
  • Scale and Tire Inflation Systems
  • Air-Operated Side Latch
  • Custom Lengths and Side Lengths
  • Tire Carrier
  • Cab Kit
  • Lift Axle
  • Top Hinge Tailgate
  • Dura-Light Hub and Drum
  • Aluminum Wheels
  • And More!

Capacity

Elliptical Volume Capacity (Water Level)

40' Length x 102" Width x 76" Side Height
65 Cubic Yards

40' Length x 102" Width x 100" Side Height
87 Cubic Yards

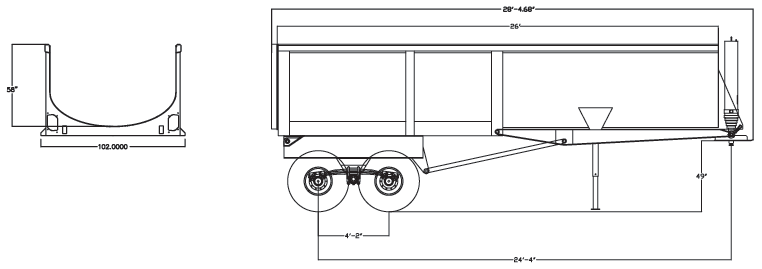

Line Drawings

Standard ELLIPTICAL END Dump

Downloads

Gallery

Photos

Frameless

Full Frame

Videos

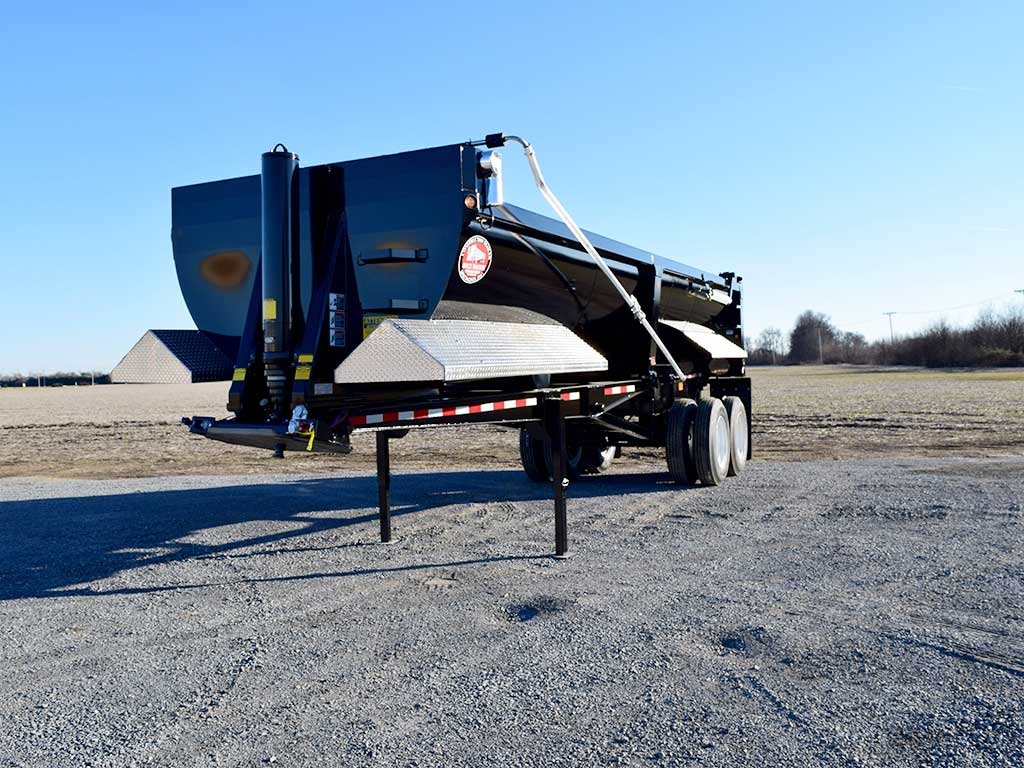

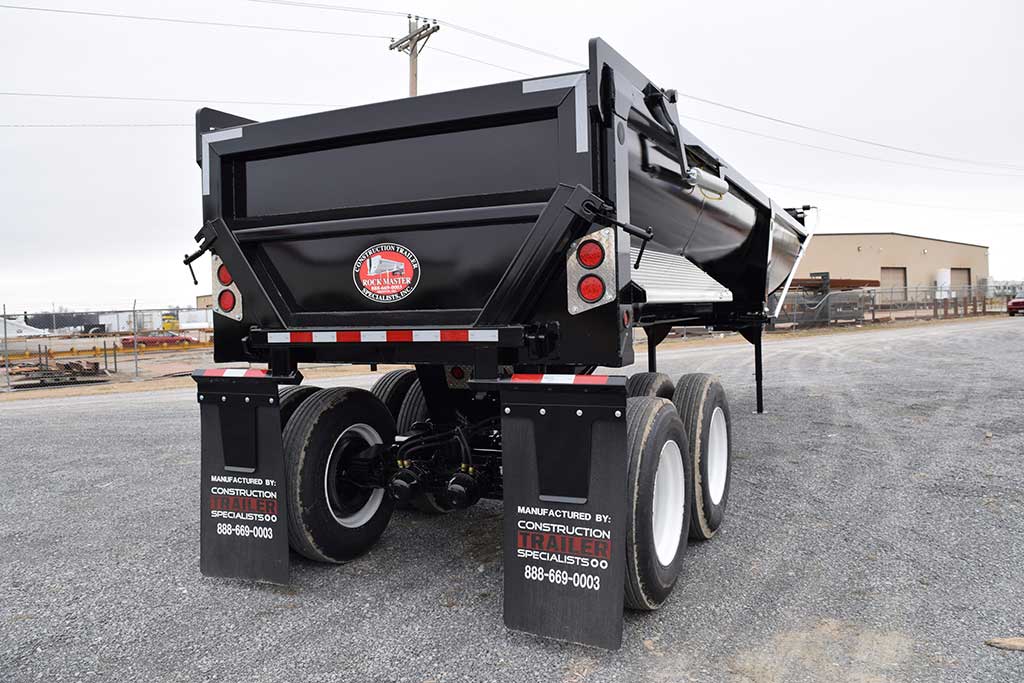

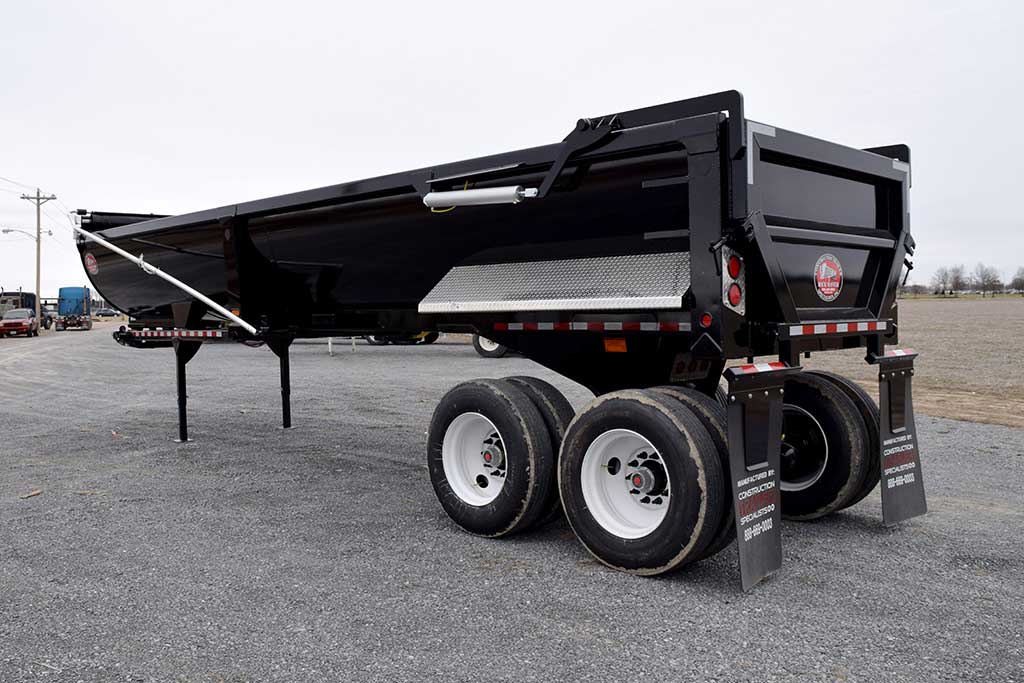

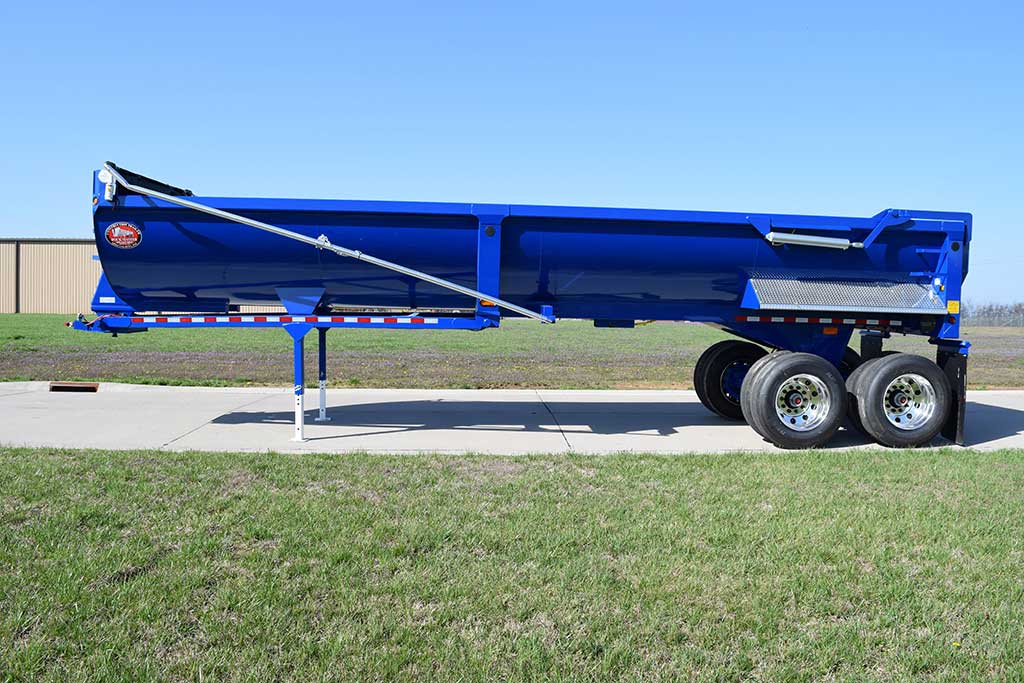

The Rock Master™ half round end dump trailer is one of the most versatile trailers we manufacture. The half round can haul a variety of materials including dirt, gravel and rip rap. Because our half round can be configured so many different ways, it can be used in metropolitan areas as well as gravel pits and quarries. The half round end dump trailer also features a 1/4" AR 450 tub to withstand the constant impact the work requires. The single point suspension always keeps all eight tires on the ground during the dump cycle. The high-lift tailgate ensures the tailgate does not obstruct with material in the tub.

Specs

Standard Trailer Specifications

Dimensions 32' Length x 102" width x 48" Side Height
Lighting Standard LED Lighting
King Pin/Coupler Height 18" / 49"
Color White, Black or Grey
Hoist 8", 5 Stage, Inverted Trunnion Mount
Tub 1/4" AR 450 Wear Plate
Nose & Gate 3/16" AR 450 Wear Plate
Axles 25,000lb. 5" Tubular , 5/8" Wall
Suspension 50,000lb. Single Point. Keeps 8 Tires on the Ground.
Tires/Wheels 11R x 24.5 16 Ply Radials / 10 Hole Hub Piloted Steel
Fenders Rear Aluminum Bolt-On
Ladders Front and Rear
Paint High-Gloss, Reverse Impact, UV-Protectant, Rust-Inhibiting
Tailgate Air-Oporated Hi-Lift, Integrated Mud Flaps

Options

Trailer Options

  • Air Ride Suspension
  • Triple Axles
  • Front and Rear Lift Axle
  • Quarter Frame
  • Full Frame
  • Asphalt Aprons
  • Front Fenders
  • Numerous Tarps
  • Safety Locks
  • Custom Colors
  • Custom Lengths & Side Lengths
  • Spreader Chains
  • Numerous Wheels and Tires
  • Tire Carrier
  • Cab Kit
  • Tire Carrier
  • Double Hinge Tailgate
  • Additional Options Available

Capacity

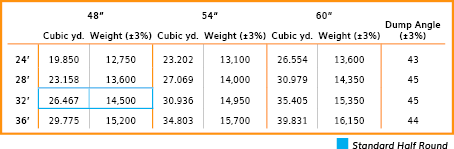

Half Round Volume Capacity (Water Level)

Line Drawings

Standard HALF ROUND END Dump

Downloads

Gallery

Photos



The Sand Master™ lightweight end dump trailer is perfectly equipped to handle your sand and small aggregate needs. Most competitors' trailers of this design require a liner in the bottom of the tub. This is not so with our lightweight end dump! Because the floor, nose and gate are made from AR 450 wear plate material, our trailer doesn't require the liner. The three-piece tub design of the lightweight end dump is constructed of full-length sides and floor that provides great strength for the trailer. By designing this trailer without the need of a doghouse, material is allowed to flow smoothly with no obstruction. As with all our end dump trailers, the lightweight end dump features the single point suspension that keeps all eight tires on the ground during the dump cycle.

Specs

Standard Trailer Specifications

Dimensions 37' Length x 102" width x 36" Side Height (Plus 6" Bang Boards)
Weight 12,400 lbs. (+/- 3%)
Lighting Standard LED Lighting
King Pin/Coupler Height 18" / 49"
Color White, Black or Grey
Sides 10 GA. High-Strength
Floor/Nose/Gates 10 GA. AR 450 Wear Plate
Ladders Roadside Front and Rear
Axles 25,000lb. 5" Tubular , 5/8" Wall
Suspension 50,000lb. Single Point
Tires/Wheels 11R x 24.5 16 Ply Radials / 10 Hole Hub Piloted Steel
Paint High-Gloss, Reverse Impact, UV-Protectant, Rust-Inhibiting
Fenders Rear Aluminum Bolt-On

Options

Trailer Options

  • Numerous Tarp Options
  • 11R x 22.5 Radials
  • Air Ride Suspension
  • Aluminum Wheels
  • Tire Carrier
  • Duralight Hubs and Drum
  • And More!

Capacity

Lightweight End Dump Volume Capacity (Water Level)

Standard 37' Length x 102" Width x 36" Side Height
39.5 Cubic Yards

Line Drawings

Standard LIGHTWEIGHT END Dump

Downloads

Gallery

Photos
